Pack conveyors, container conveyors and pallet conveyors from BMS
Covering the entire transport area of a filling line for an ideal material flow.
BMS conveyors are custom-made, solid structures of durable stainless steel: Based on a flexible modular system and using a specially developed COP concept (carry-over parts from previous models) we are able to optimally cover the entire conveyor range of the wet and dry areas of a bottling line.
Our in-house production also offers additional advantages: we ensure an ideal flow of material without compromise – and enable further expansions even after several years. For our drives we solely used gear motors from reputable manufacturers with frequency converters and soft start features. Upon request, the conveyors can be connected to the system control via bus interface.

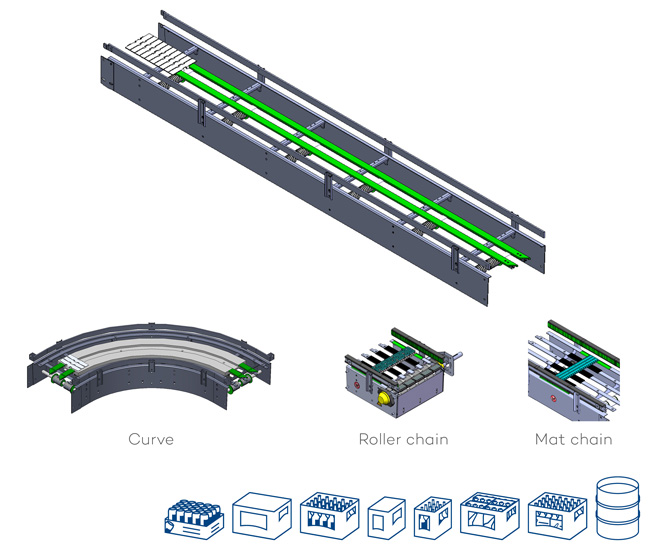

UNITRANS G FLEX
Pack conveyor without adjustable railing
- Packs from lengthwise to crosswise or from crosswise to lengthwise
- Energy-saving drives
- Compact design
- Stainless steel construction

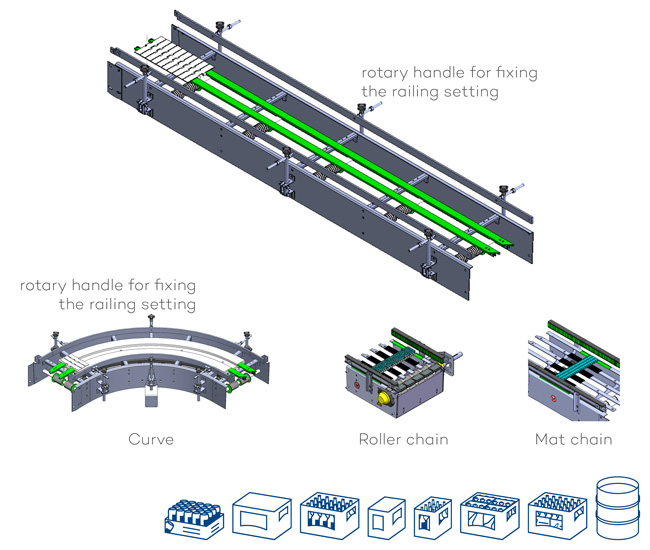

UNITRANS G
Pack conveyor
- Pack from short-side leading to long-side leading or from long-side leading to short-side leading
- Energy-efficient drives
- Compact design
UNITRANS B
Container conveyor
- Easy cleaning due to the open design
- Optional automatic conveyor belt cleaning systems
- Energy-efficient drives
- Made of stainless steel

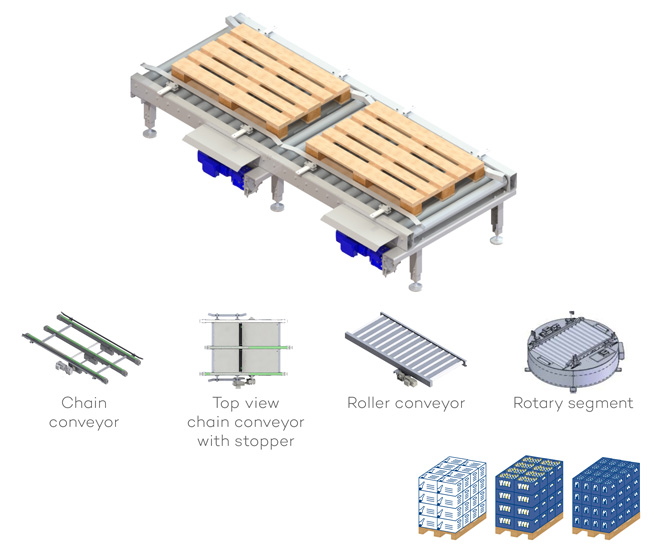

UNITRANS P
Pallet conveyor
- End turning systems, turning station, chain and roller conveyors, pallet magazine
- Made of stainless steel or galvanised
- Robust and durable
- Load per pallet up to 1.000 kg
- Suitable for euro pallet 1200 x 800 mm, industrial pallet 1000 x 1200 mm, half pallet 600 x 800 mm, quarter pallet 600 x 400 (cardboard boxes and trays)
